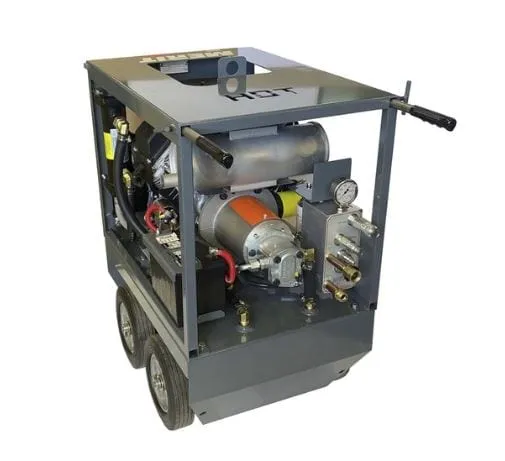

M300 MERIT HYDRAULIC POWER UNIT
NOT INCLUDED
Applications
- Gas powered unit for hydraulic products such as , , and .
- Maximum 14.5 GPM / 2,000 PSI (Pre-set at 12gpm)
Benefits
- Compact design delivers almost 15 gpm with the footprint of most 10 gpm units
- Low mounted oil and fuel tanks keep center of gravity low and aid in maneuverability
- Hydraulic and water fittings mounted inside frame rails for protection

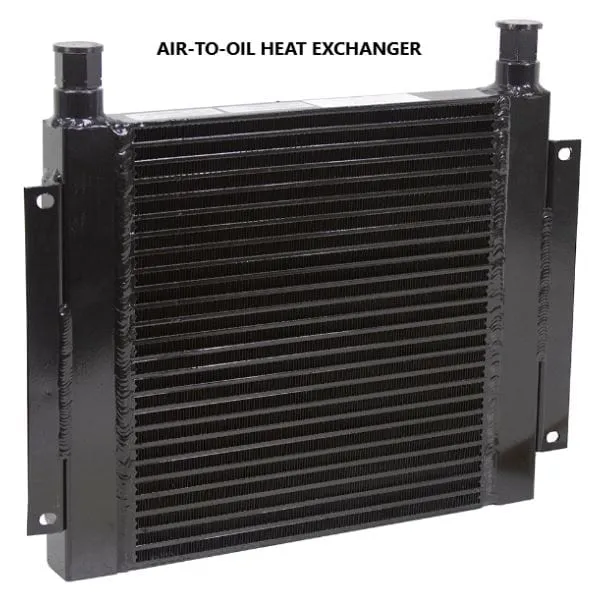

- Dual hydraulic oil coolers keep temps down under the most demanding work environments

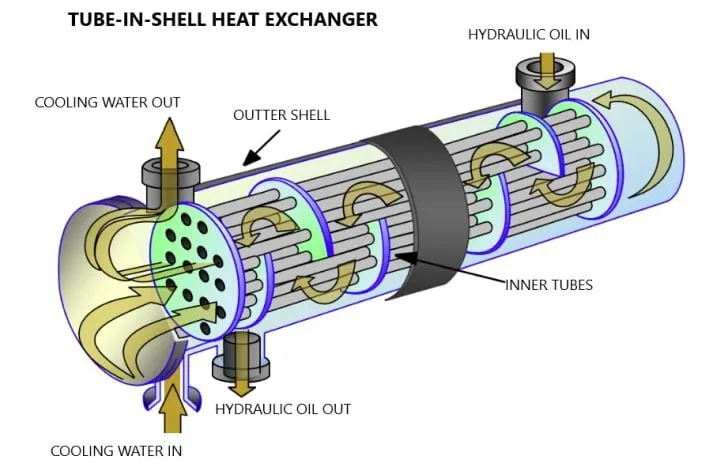

- Self draining tube-in-shell cooler safeguards against damage in cold climates
- Variable flow valve allows users to adjust flow output from 1-14.5 gpm
- Manifold mounted pressure gauge allows operator to monitor tool load
- Lifting point allows for easy loading and transport
- Spin on hydraulic oil filter makes oil changes convenient
TECHNICAL SPECIFICATIONS

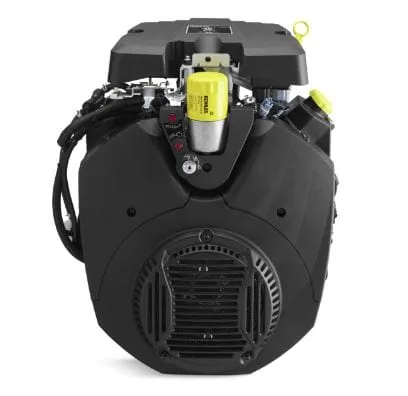

| Power, hp | 23HP KOHLER |
| Engine | Gas twin cylinder OHV, air-cooled, electric start |
| Pressure, psi | 2,000 |
Flow, gpm | Pre-set to 12gpm 1-14.5 variable |
| Weight (with oil), lbs | 350 |
